Description
Tunable Color Temperatures
3500K
4000K
5000K
WR4FT303540W-3545K

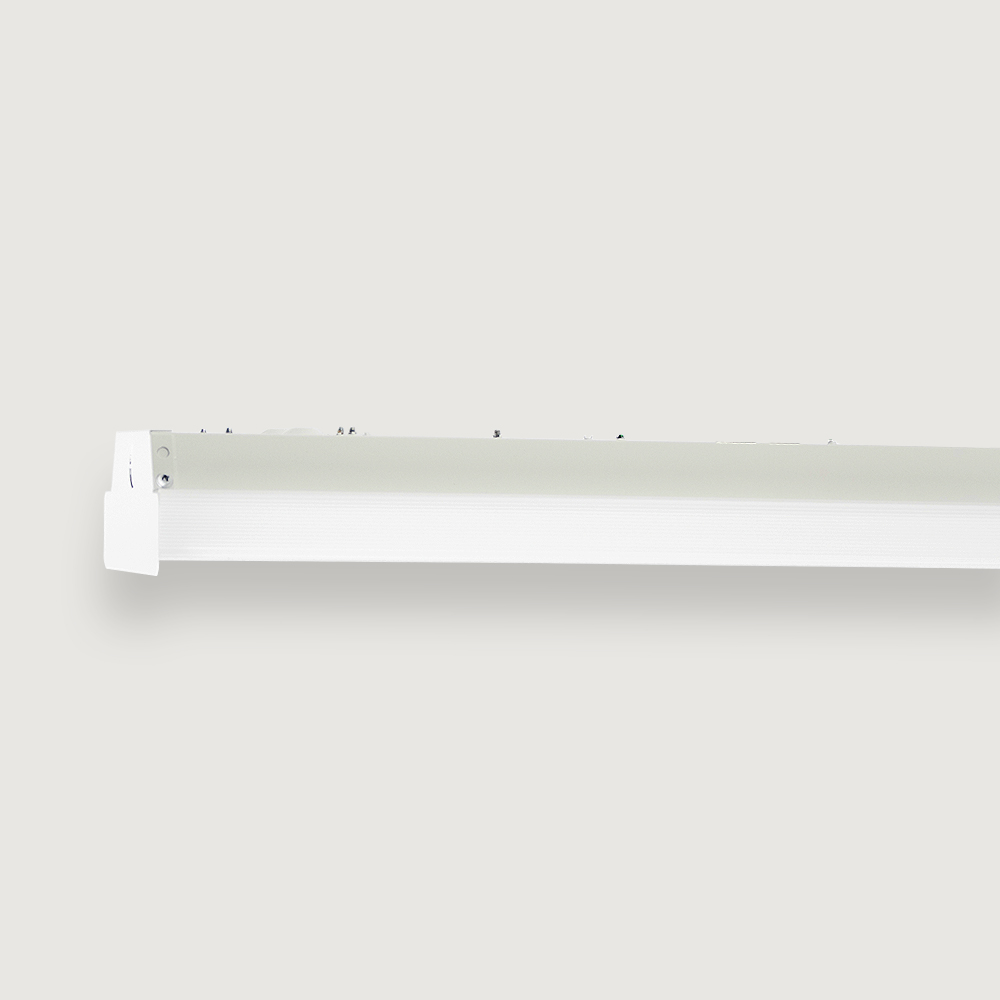

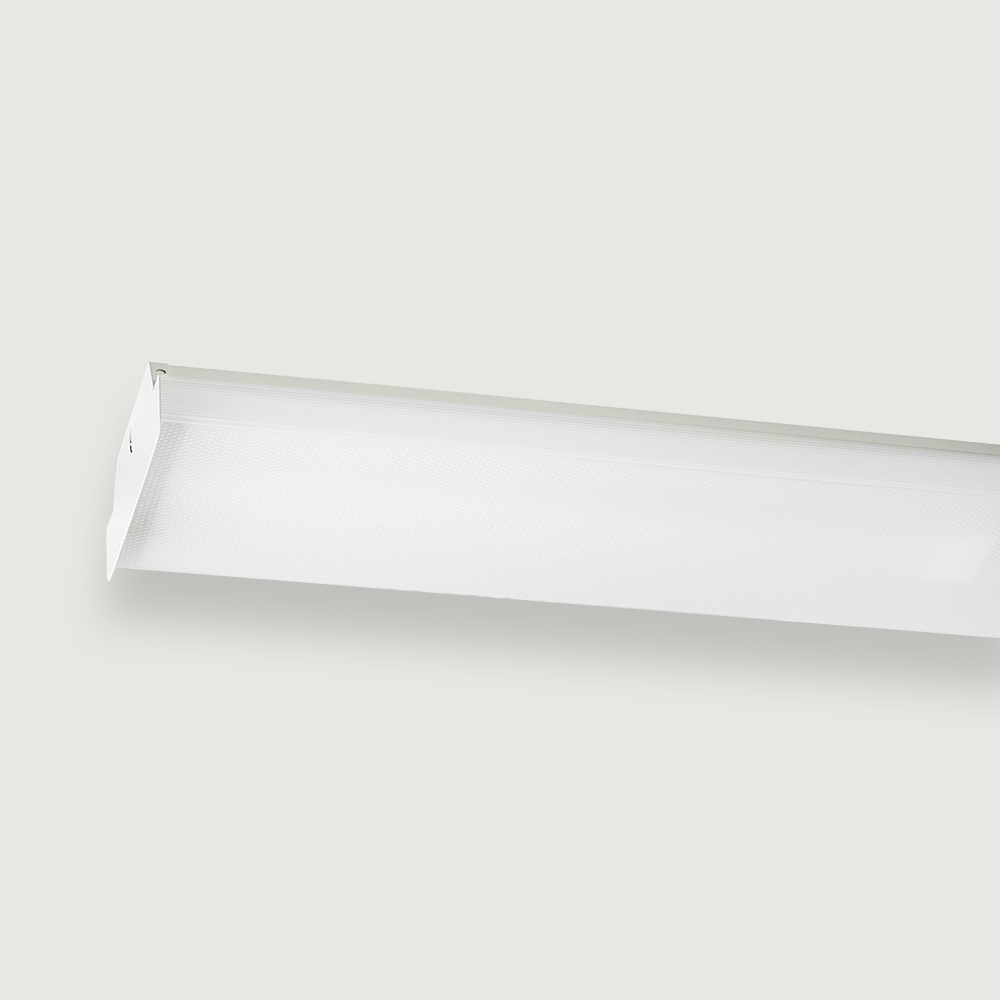

NuGem Select™ LED Wraparound, 4-FT, 40W Max, 3-Wattages + 3-CCT (35/40/50K), Damp Rated, 130 lm/W, Dimmable
Applications
Premium indoor luminaire suitable for general indoors, lobbies, offices, meeting rooms, restrooms, hallways, stairwells, storage-closets, kitchens, and work-stations.
Construction
Manufactured for durability using aluminum sheet housing with semi-gloss coating to resist corrosion, discoloration, and scratching. Damp Location rated.
Electrical
Input voltages 120-277V models with 0-10V Continuous Dimming. Tunable 3-CCT (3500K, 4000K, 5000K) and Tunable 3-Wattages. Operating temperatures -4°F to 113°F (-20°C to 45°C).
Mounting
Surface Mounting on ceilings or beams.
Optics

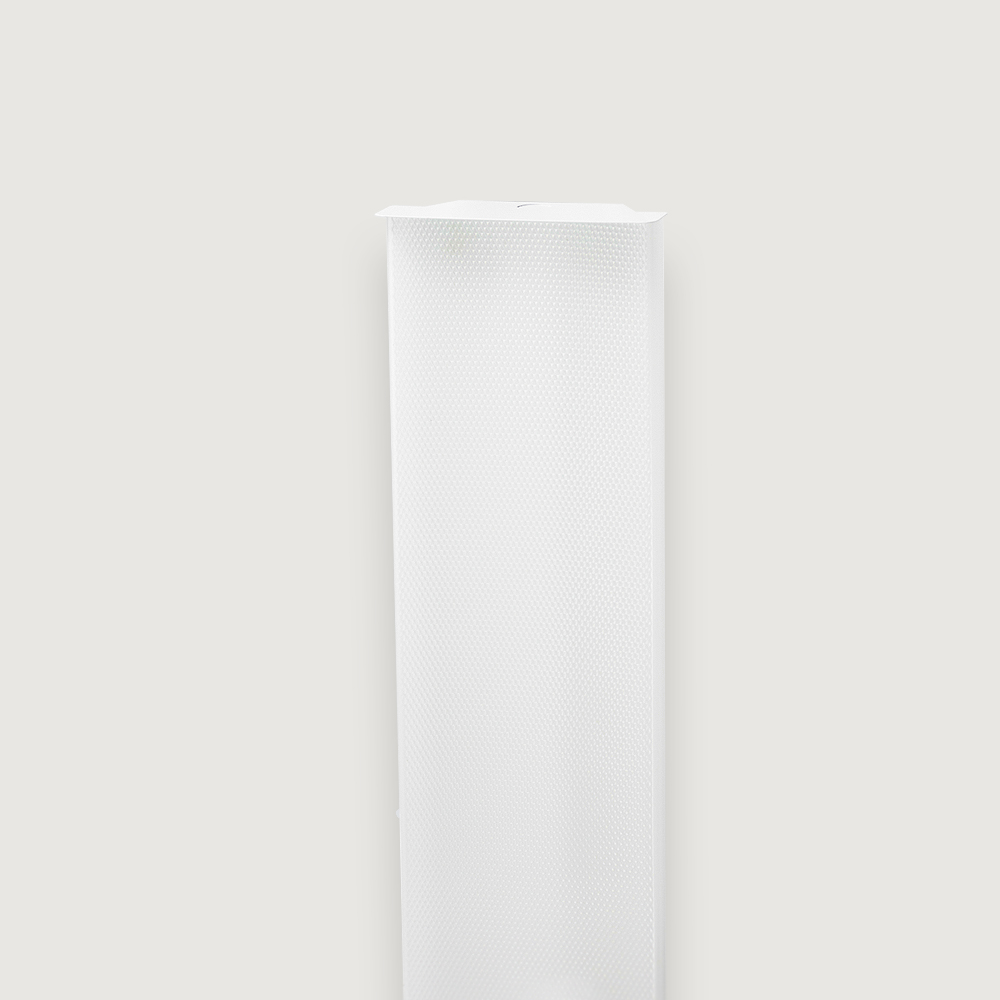

Anti-UV Frosted Prismatic Polycarbonate Lens.
Listings
DLC listed. UL certified to meet US and Canadian standards. FCC and RoHS compliant.
Warranty
5 year exclusive limited warranty.
Download Spec Sheet | More Data
Additional information
| Energy Data | Input Frequency: 50/60 Hz Input Voltage: 120-277V Operating Temperature: -4°F to 113°F (-20°C to 45°C) Power Factor: >0.9 THD: <15% Wattage: 3-Wattage Select (30W, 35W, 40W) |
|---|---|
| Lighting Data | Lumens: (3900, 4550, 5200) CCT: 3-CCT Select, 3500K, 4000K, 5000K CRI: ≥80 Dimmable: 0-10V Efficacy: 130 lm/W L70: 50000 hrs |
| Physical Data | Color: White Semi-Gloss Diffuser: Frosted, Prismatic Lens Type: Polycarbonate Size: 4-FT Rating: Damp Location Warranty: 5 Years |
