Description
Tunable Color Temperatures
3000K
4000K
5000K

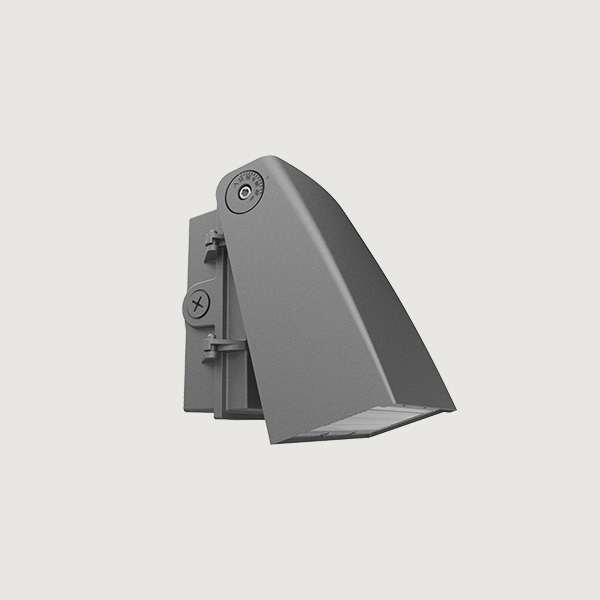

WK06-120/100/80W-H-TCP(XX)-Y
DuraGem Select™ LED Adjustable Cutoff Wall Pack, 120W Max (3-WATT + 3-CCT), Wet Rated, 130 lm/W, Dimmable + Smart
Applications
Premium outdoor luminaire suitable for wall mounting on building exteriors for entrances, courtyards, alleys, and pedestrian walkways.
Construction
Manufactured for weather-proof durability using solid heavy duty die cast aluminum housing with anti-UV polyester coating to resist water, salt, corrosion, discoloration, and scratching. Wet Location rated.
Electrical
Input voltages 120-277V models with 0-10V Continuous Dimming. Tunable 3-CCT (3000K, 4000K, 5000K) and Tunable 3-Wattages. Operating temperatures -40°F to 113°F (-40°C to 45°C).
Mounting
Wall mounted installations.
Optics
Anti-UV Clear Prismatic Tempered Glass Lens. Adjustable vertical beam position.
Controls
Installed fixture integrated Photocell sensor available.
Listings
DLC Premium listed. UL certified to meet US and Canadian standards. FCC and RoHS compliant.
Warranty
5 year exclusive limited warranty.
Download Spec Sheet | More Data
Additional information
| Energy Data | Input Frequency: 50/60 Hz Input Voltage: 120-277V Operating Temperature: -4°F to 113°F (-20°C to 45°C) Power Factor: >0.9 THD: <15% Wattage: 3-Wattages (80W, 100W, 120W) |
|---|---|
| Lighting Data | Lumens: 5200, 10400, 7800 CCT: 3-CCT Select, 3000K, 4000K, 5000K CRI: ≥70 Dimmable: 0-10V Efficacy: 130 lm/W L70: 50000 hrs |
| Physical Data | Color: Bronze Satin Diffuser: Clear, Prismatic Lens Type: Polycarbonate Rating: Wet Location Warranty: 5 Years |
