Description
Tunable Color Temperatures
3500K
4000K
5000K
5700K
6500K
T88F-M48W-CCT-AB

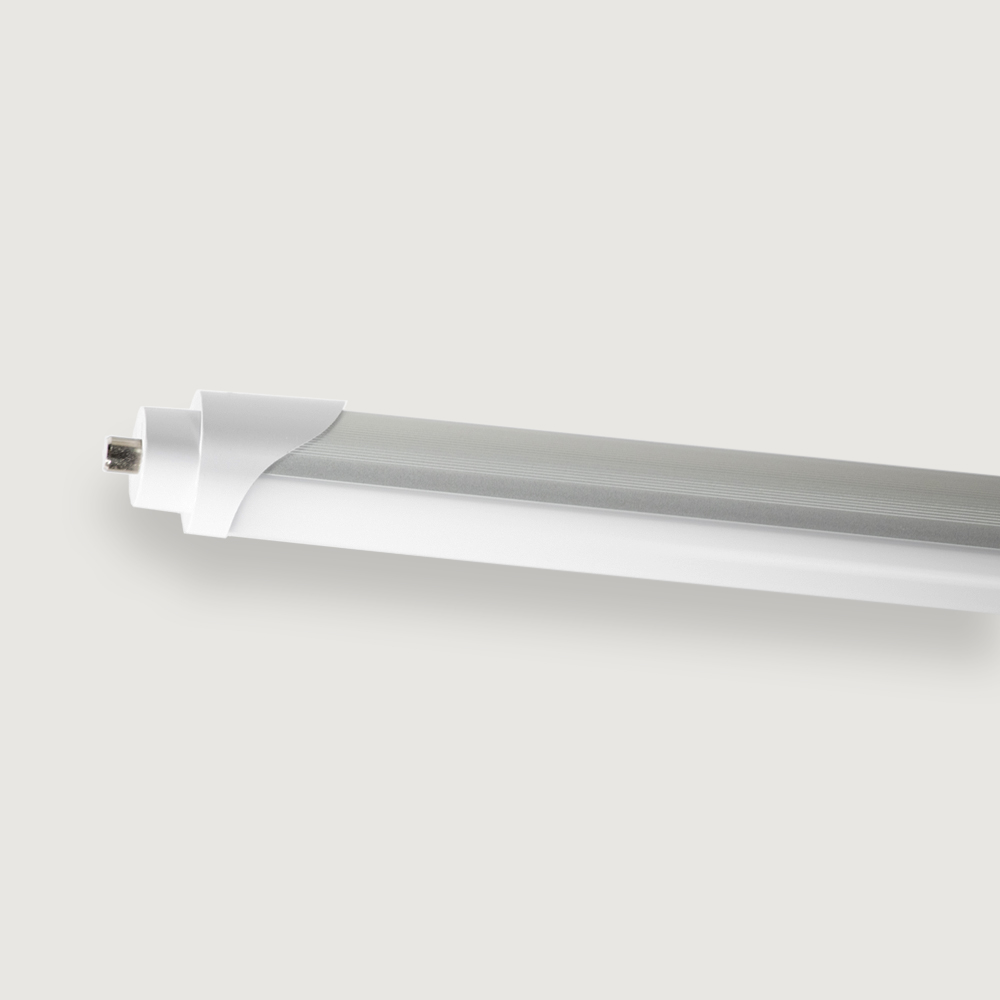

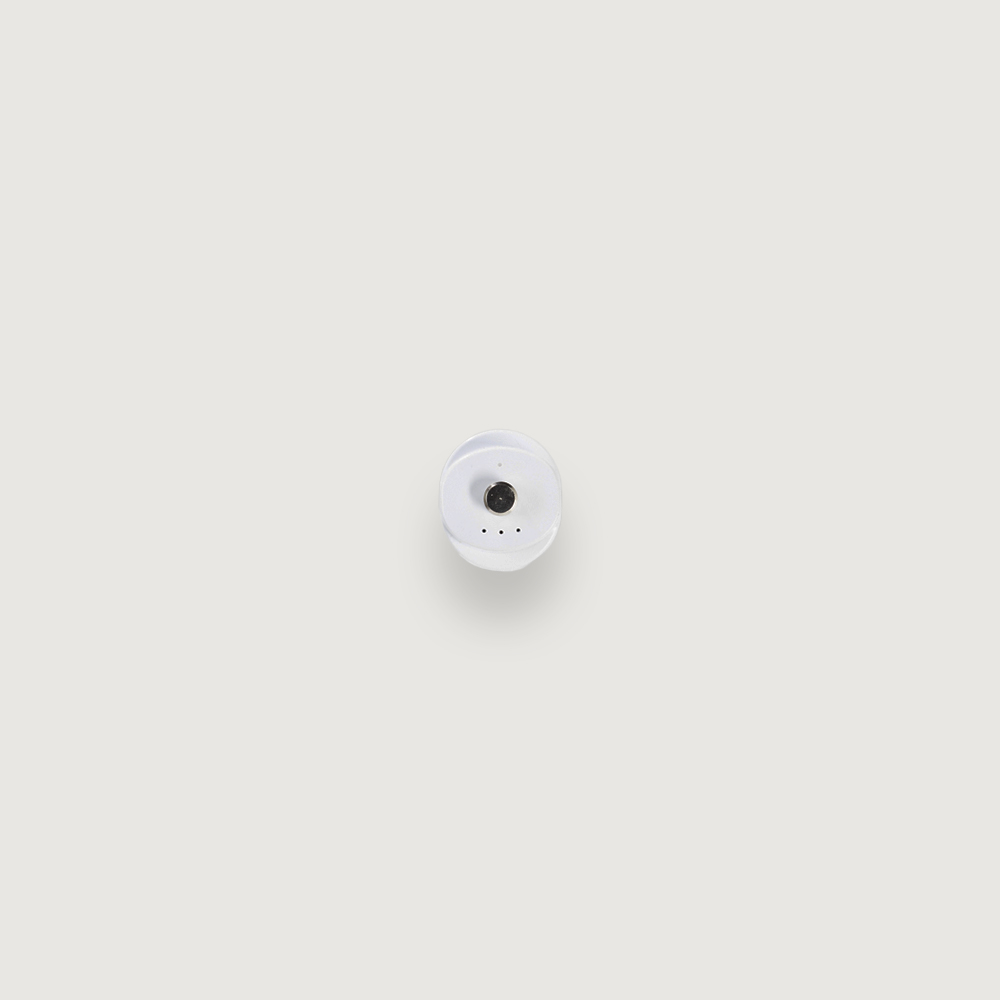

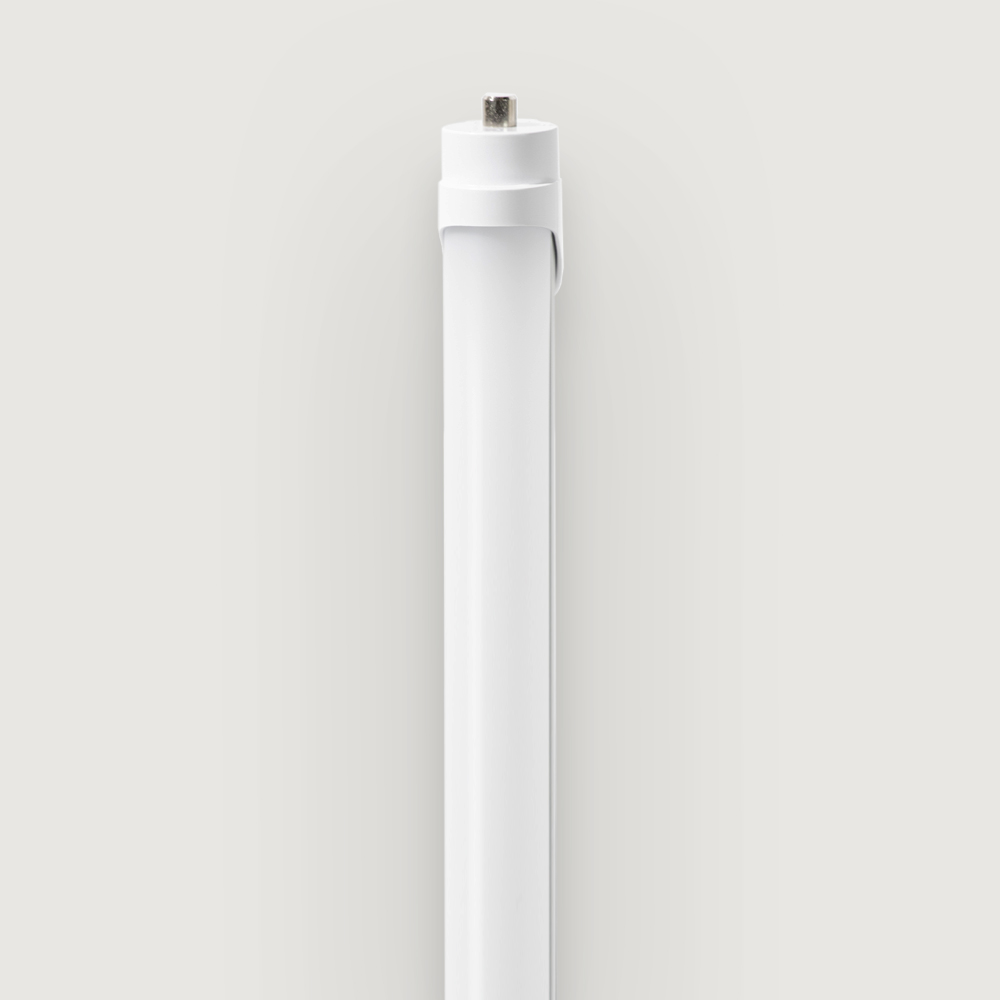

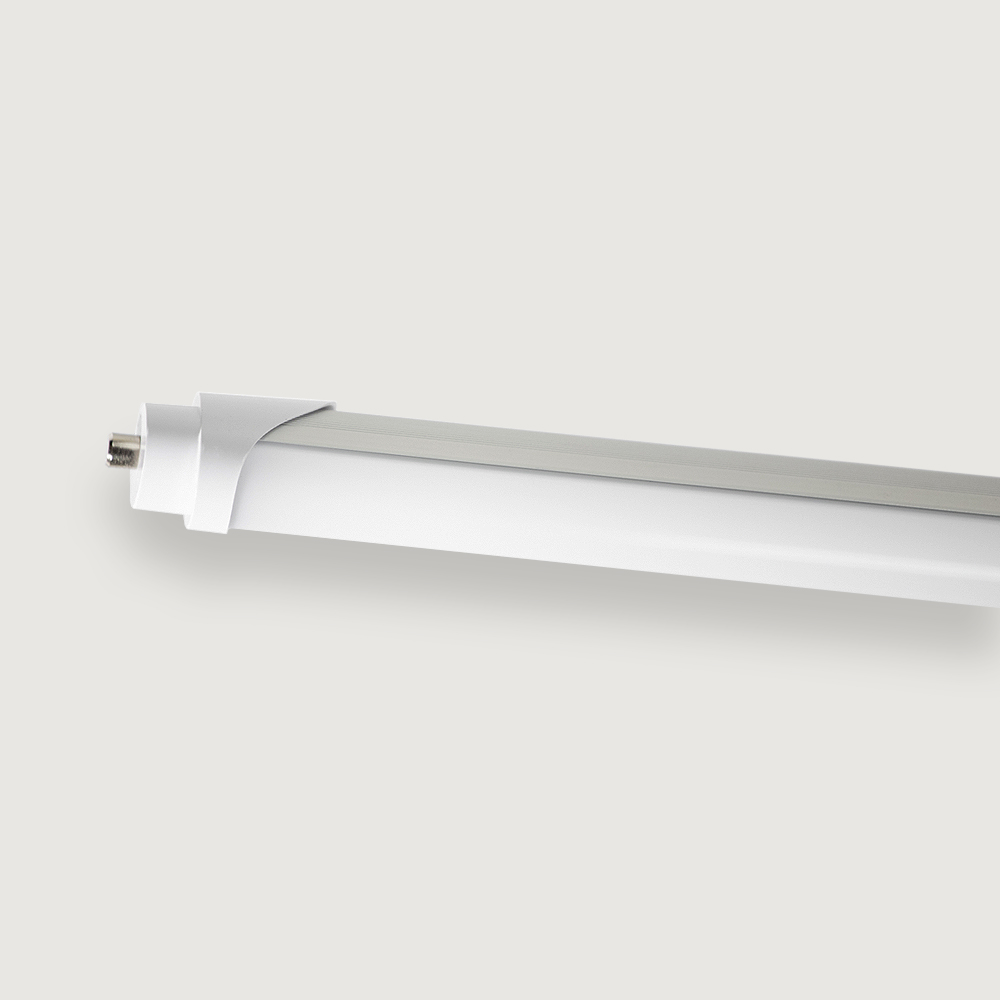

PentaLum Select™ LED T8 Tube, 8-FT, 48W Max (5-WATT + 5-CCT), Damp Rated, 150 lm/W, FA8, Type B, Double Ended Power
Applications
Premium indoor replacement lamp intended to replace 8 foot T8 or T12 fluorescent lamps with FA8 single pin end caps for linear lamp fixtures. Suitable for use in linear wraparounds, and shop lights.
Construction
Manufactured for durability and heat dissipation using aluminum sheet backing. Damp Location rated.
Electrical
Input voltage 120-277V. Type A+B, Hybrid plug and play to operate with or without a ballast. Double Ended Power installations for FA8 HO end caps. Dimmable with Type A by ballast. Non-dimmable with Type B internal driver. Tunable 5-CCT (3500K, 4000K, 5000K, 5700K, 6500K) and Tunable 5-Wattages. Operating temperatures -4°F to 104°F (-20°C to 40°C).
Mounting
Replacement lamp push-locks into existing linear 8 foot T8 lamp fixture.
Optics
Shatter resistant anti-UV Frosted Polycarbonate Lens with 140° beam angle.
Controls
Compatible with ON/OFF occupancy sensors.
Listings
DLC listed. UL certified to meet US and Canadian standards. FCC and RoHS compliant.
Warranty
5 year exclusive limited warranty.
Download Spec Sheet | More Data
Additional information
| Energy Data | Input Frequency: 50/60 Hz Input Voltage: 120-277V Operating Temperature: -4°F to 131°F (-20°C to 50°C) Power Factor: >0.9 THD: <10% Wattage: 5-Wattages Select (24W, 30W, 36W, 42W, 48W) |
|---|---|
| Lighting Data | Lumens: (3600 to 7200) CCT: 3500K, 4000K, 5000K, 5700K, 6500K CRI: ≥80 Dimmable: No Efficacy: Up to 150 lm/W L70: 50000 hrs |
| Physical Data | Color: White Semi-Gloss, Silver Diffuser: Frosted Lens Type: Polycarbonate Size: 8-FT Rating: Damp Location Warranty: 5 Years |
| Application | Driver Type: Type A, Type B Installation: Double-Ended Power |
