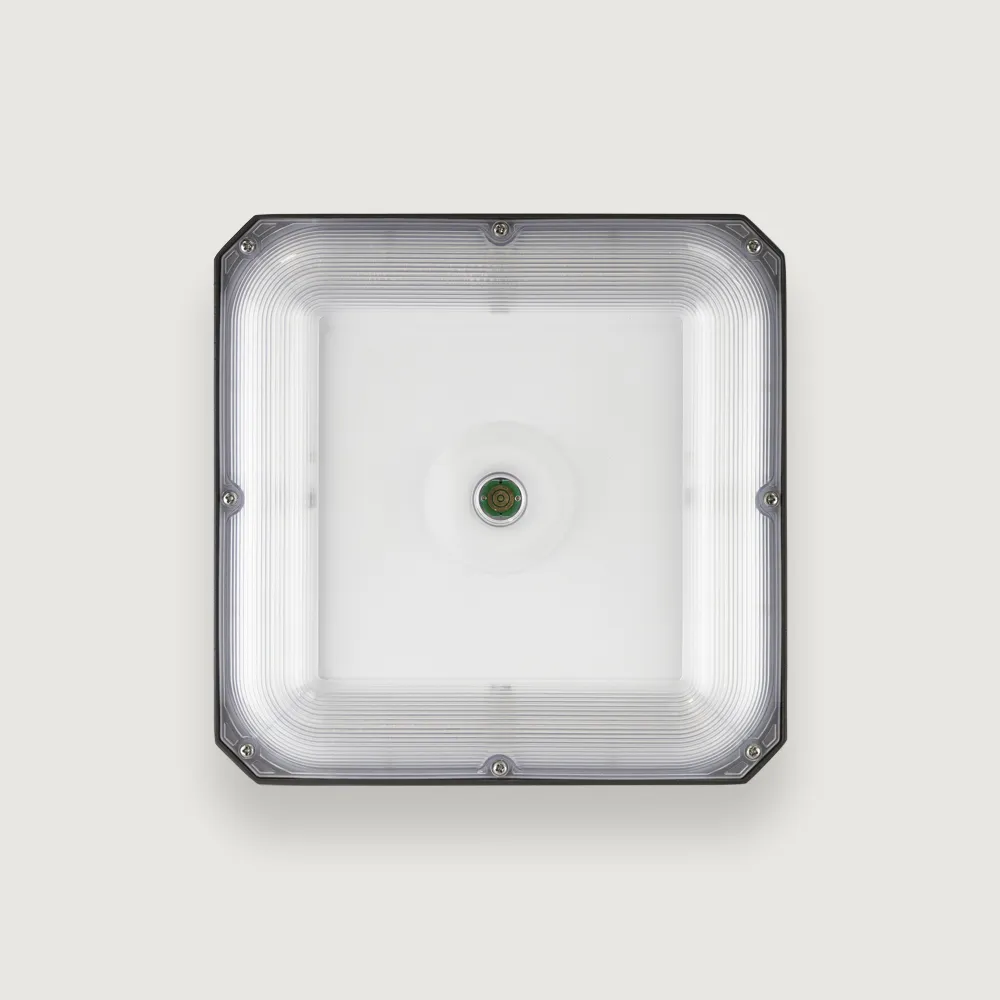

GP04-100/80/60W-H-TCP

TriLum Tunable™ LED Canopy Light, 100W Max, 3-Wattages + 3-CCT (35/40/50K), Wet Rated, 130 lm/W, Dimmable + Smart

Applications

Premium outdoor luminaire for surface mounting in ceiling spaces less than 25 feet. Suitable for general storage, cold storage, parking garages, and canopies.

Construction

Manufactured for weather-proof durability using solid heavy duty die cast aluminum housing with anti-UV polyester coating to resist water, salt, corrosion, discoloration, and scratching. Wet Location rated.

Electrical

Input voltages 120-277V with 0-10V Continuous Dimming. Tunable 3-CCT (3500K, 4000K, 5000K) and Tunable 3-Wattage. Operating temperatures -40°F to 104°F (-40°C to 40°C).

Mounting

Surface mounted installation.

Optics

Anti-UV Frosted Prismatic Polycarbonate Lens.

Controls

Installed fixture mounted PIR or Microwave Sensor with Daylight Priority. Remote Control or Bluetooth App Control options available.

Emergency

Installed 90 Minute Emergency Backup Battery Driver options available.

Listings

DLC Premium listed. UL certified to meet US and Canadian standards. FCC and RoHS compliant.

Warranty

5 year exclusive limited warranty.


Download Spec Sheet | More Data
Model: GP04-100/80/60W-H-TCP
Category:

Description

Tunable Color Temperatures

3500K

4000K

5000K

Additional information

Energy DataInput Frequency:
Input Voltage:
Operating Temperature:
Power Factor:
THD:
Wattage:
Lighting DataLumens:
CCT: , , ,
CRI:
Dimmable:
Efficacy:
L70:
Physical DataColor:
Diffuser: ,
Lens Type:
Rating:
Warranty:
