Description
Tunable Color Temperatures
3500K
4000K
5000K
BD05-24W-X-TCP-Y-ZZ

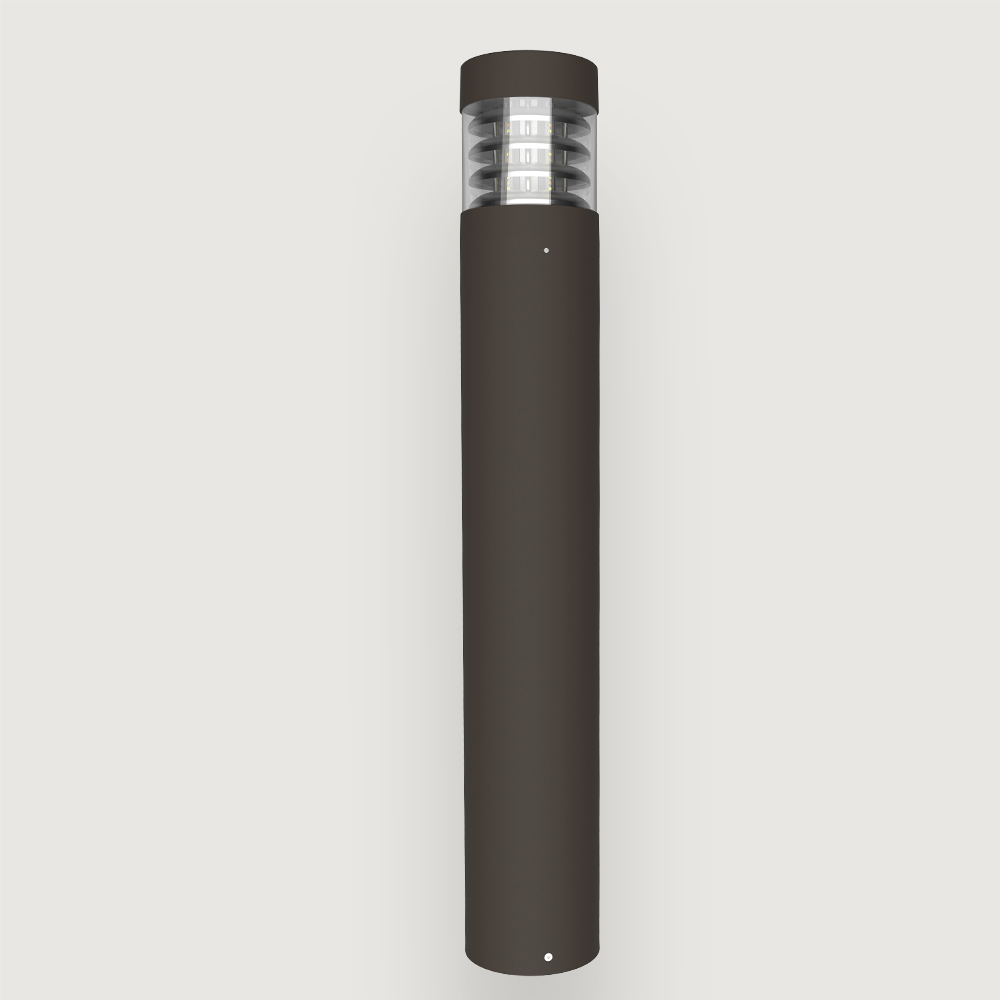

NuGem Select™ LED Bollard Light, 24W Max (3-WATT + 3-CCT), Wet Rated, 140 lm/W, Dimmable + Photocell Option
Applications
Premium outdoor luminaire suitable for entrances and walkways.
Construction
Manufactured for durability using die-cast aluminum housing with UV resistant powder coating to resist water, salt, corrosion, discoloration, and scratching. Wet Location rated.
Electrical
Input voltages 120-347V models with 0-10V Continuous Dimming. Tunable 3-CCT (3500K, 4000K, 5000K) and Tunable 3-Wattages. Operating temperatures -40°F to 113°F (-40°C to 45°C).
Mounting
Ground Anchor installation standard.
Optics
Anti-UV Clear Polycarbonate Lens specially designed Cone Reflector or Internal Louver Lens.
Controls
Fixture integrated Photocell with DIP Switch available.
Listings
DLC Premium listed. UL certified to meet US and Canadian standards. FCC and RoHS compliant.
Warranty
5 year exclusive limited warranty.
Download Spec Sheet | More Data
Additional information
| Energy Data | Input Frequency: 50/60 Hz Input Voltage: 120-347V Operating Temperature: -40°F to 113°F (-40°C to 45°C) Power Factor: >0.9 THD: <20% Wattage: 3-Wattages (14W, 19W, 24W) |
|---|---|
| Lighting Data | Lumens: (1960, 2660, 4200) CCT: 3-CCT Select, 3500K, 4000K, 5000K CRI: ≥70 Dimmable: 0-10V Efficacy: 140 lm/W L70: 50000 hrs |
| Physical Data | Color: Bronze Satin Diffuser: Clear Lens Type: Polycarbonate Rating: Wet Location Warranty: 5 Years |
