Description
Tunable Color Temperatures
3000K
4000K
5000K
TP350-W30

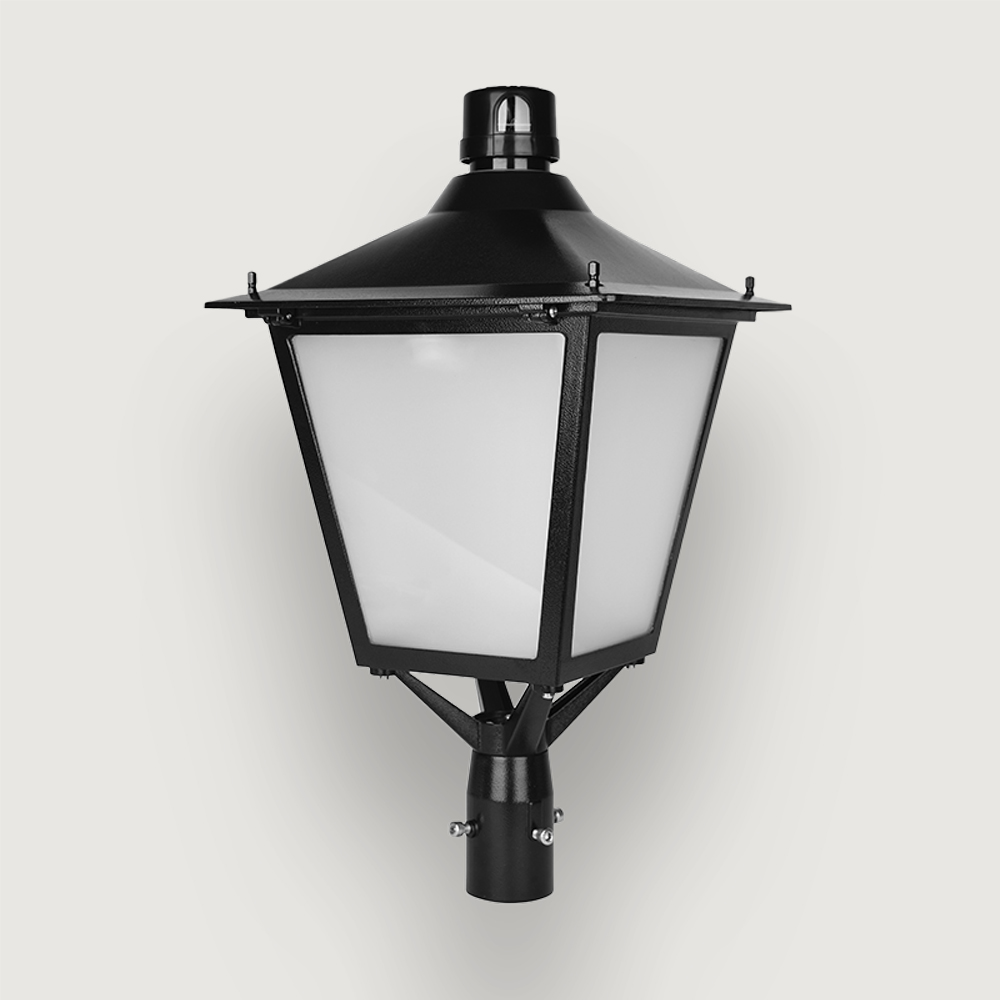

NuGem Select™ LED Post Top Lantern, 30W, 3-CCT (30/40/50K), Wet Rated, 105 lm/W, Dimmable
Applications
Premium outdoor luminaire suitable for entrances, building exteriors, parks, and pedestrian walkways.
Construction
Manufactured for weather-proof durability using solid heavy duty die cast aluminum housing with anti-UV polyester coating to resist water, salt, corrosion, discoloration, and scratching. Wet Location rated.
Electrical
Input voltages 120-277V models with 0-10V Continuous Dimming. Tunable 3-CCT (3000K, 4000K, 5000K). Operating temperatures -40°F to 113°F (-40°C to 45°C).
Mounting
Includes 3-inch Slip-Fit Pole Mounting base.
Optics
Anti-UV Frosted Tempered Glass IES/ NEMA Type 5 Lens.
Controls
Includes NEMA 3-Pin Photocell Sensor Cap.
Listings
DLC listed. UL certified to meet US and Canadian standards. FCC and RoHS compliant.
Warranty
5 year exclusive limited warranty.
Download Spec Sheet | More Data
Additional information
| Energy Data | Input Frequency: 50/60 Hz Input Voltage: 120-277V Operating Temperature: -40°F to 113°F (-40°C to 45°C) Power Factor: >0.9 THD: <15% Wattage: 30W |
|---|---|
| Lighting Data | Lumens: 3150 CCT: 3-CCT Select, 3000K, 4000K, 5000K CRI: ≥70 Dimmable: 0-10V Efficacy: 105 lm/W L70: 50000 hrs |
| Physical Data | Color: Black Semi-Gloss Diffuser: Frosted Lens Type: Tempered Glass Rating: Wet Location Warranty: 5 Years |
