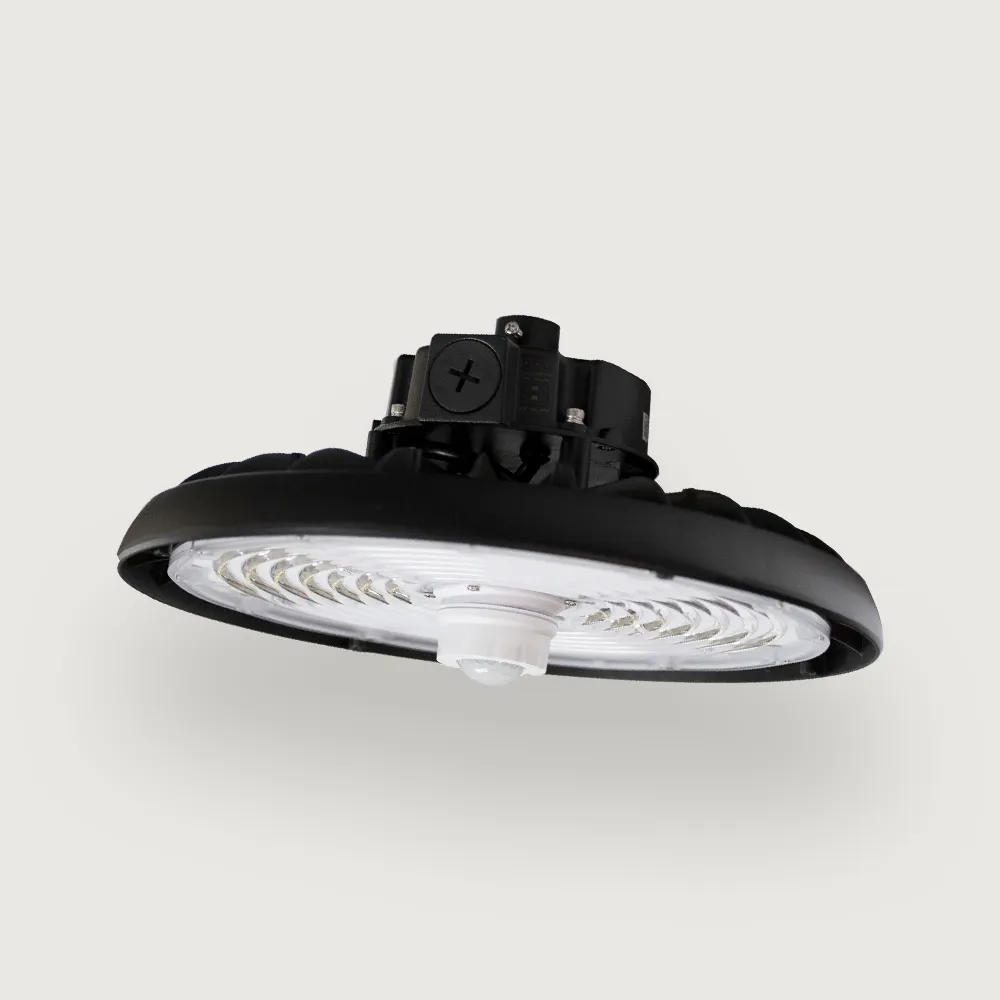

ETH-UFO-240/200/150W-3CCT-Y

ProGem Select™ LED Round High Bay, 240W Max, 3-Wattages + 3-CCT (35/40/50K), Wet Rated, 150 lm/W, Dimmable + Smart

Applications

Premium indoor luminaire for hanging or pendant mounting in high ceiling spaces above 25 feet. Suitable for gymnasiums, warehouses, manufacturing, packaging, storage, aisles, and covered decks.

Construction

Manufactured for durability using solid heavy duty die cast aluminum housing with anti-UV polyester coating to resist water, corrosion, discoloration, and scratching. Wet Location rated.

Electrical

Input voltages 120-277V models with 0-10V Continuous Dimming. Tunable 3-CCT (3500K, 4000K, 5000K) and Tunable 3-Wattages. Operating temperatures -40°F to 113°F (-40°C to 45°C).

Mounting

Steel Hook Mount for hanging standard. Optional adjustable Yoke Mount for surface mounting available.

Optics

Anti-UV Clear Polycarbonate Ridged Lens with 80 degree beam angle standard. 90 degree Aluminum and Prismatic Polycarbonate Reflectors available. Glare Shield Polycarbonate Drop Lens available.

Controls

Installed fixture mounted PIR or Microwave Sensor with Daylight Priority. Remote Control or Bluetooth App Control options available. Installed Step-Down Autotransformer for 480V to 277V applications available.

Emergency

Installed 90 Minute Emergency Backup Battery Driver options available.

Listings

DLC Premium listed. UL certified to meet US and Canadian standards. FCC and RoHS compliant.

Warranty

5 year exclusive limited warranty.


Download Spec Sheet | More Data
Model: ETH-UFO-240/200/150W-3CCT-Y
Category:

Description

Tunable Color Temperatures

3500K

4000K

5000K

Additional information

Energy DataInput Frequency:
Input Voltage:
Operating Temperature:
Power Factor:
THD:
Wattage:
Lighting DataLumens:
CCT: , , ,
CRI:
Dimmable:
Efficacy:
L70:
Physical DataColor:
Diffuser: ,
Lens Type:
Rating:
Warranty:

Model variations…

  • ProGem Select™ LED Round High Bay, 150W Max, 3-Wattages + 3-CCT (35/40/50K), Wet Rated, 150 lm/W, Dimmable + Smart
