BL02-100W-L-3-CCT

BL02-100W-L-3-CCT

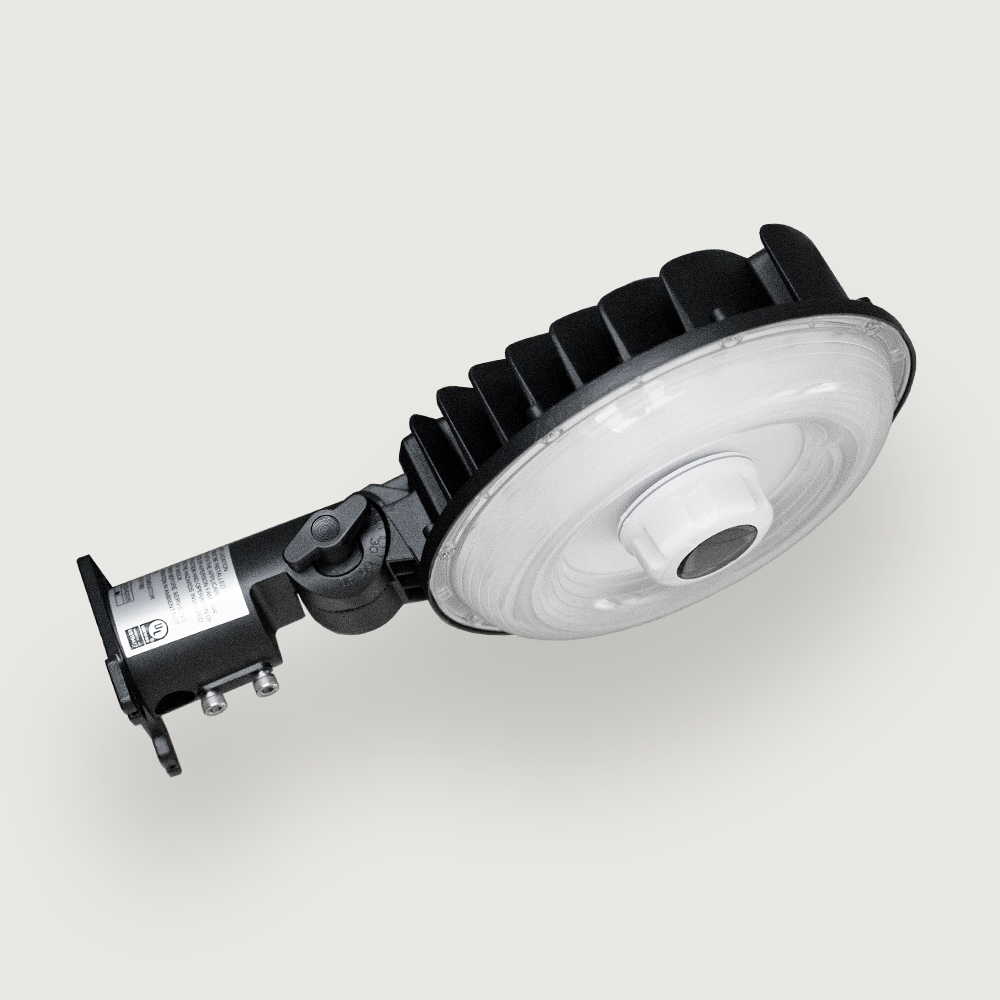

NuGem Select™ LED Dusk To Dawn Light, 100W (3-CCT), Wet Rated, 125 lm/W, Dimmable + Photocell + Smart Ready

Applications

Premium outdoor luminaire suitable for entrances, building exteriors, alleys, and pedestrian walkways.

Construction

Manufactured for weather-proof durability using solid heavy duty die cast aluminum housing with anti-UV polyester coating to resist water, salt, corrosion, discoloration, and scratching. Wet Location rated.

Electrical

Input voltages 120-277V models with 0-10V Continuous Dimming. Tunable 3-CCT (3500K, 4000K, 5000K). Operating temperatures -4°F to 113°F (-20°C to 45°C).

Mounting

Adjustable Slip-Fit/ Wall Mount standard.

Optics

Anti-UV Ridged Polycarbonate Lens standard for 120° beam angle.

Controls

Fixture integrated Photocell standard. Fixture mounted PIR or Microwave Smart Sensor with Daylight Priority. Remote Control available.

Listings

DLC Premium listed. UL certified to meet US and Canadian standards. FCC and RoHS compliant.

Warranty

5 year exclusive limited warranty.

Download Spec Sheet | More Data
Model: BL02-100W-L-3-CCT
Category:
Tag:

Description

Tunable Color Temperatures

3500K

4000K

5000K

Tenon Adapters for Slip-Fit Mount

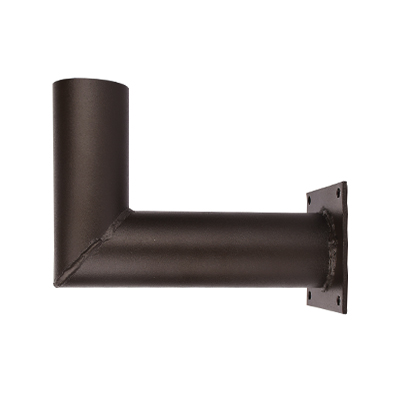

WMT-90

L-Shape Side Tenon Mount (2⅜")

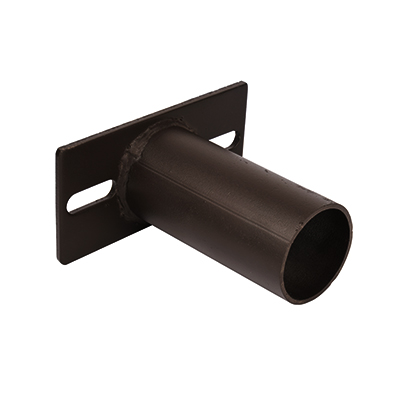

SFT-FLAT-S

5" Side Tenon Mount (2⅜") for Square Pole

SFT-RND

Side Tenon Mount (2⅜") for Square Pole

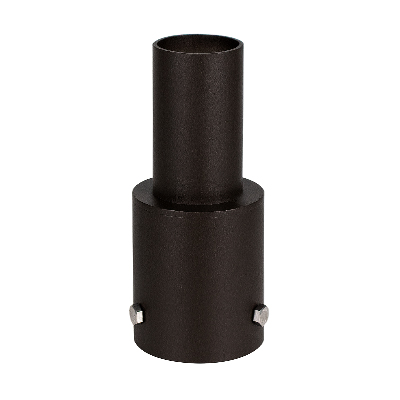

TENON-3IN-RND-ST

3" Round Pole Tenon Adapter (2⅜")

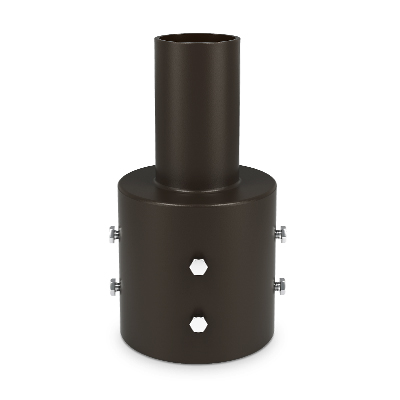

TENON-4IN-RND-ST

4" Round Pole Tenon Adapter (2⅜")

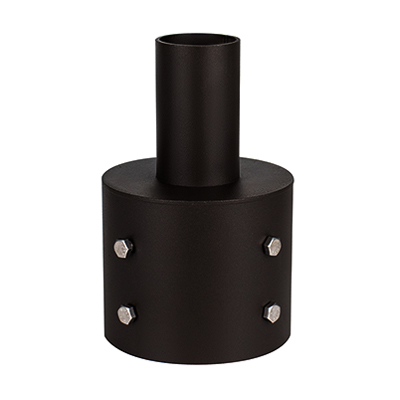

TENON-5IN-RND-ST

5" Round Pole Tenon Adapter (2⅜")

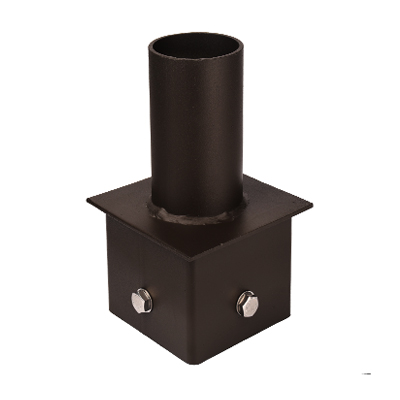

TENON-4IN-SQ

4" Square Pole Tenon Adapter (2⅜")

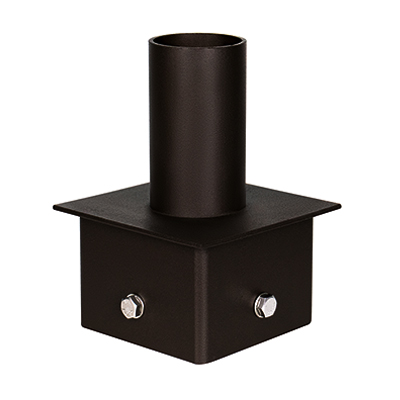

TENON-5IN-SQ

5" Square Pole Tenon Adapter (2⅜")

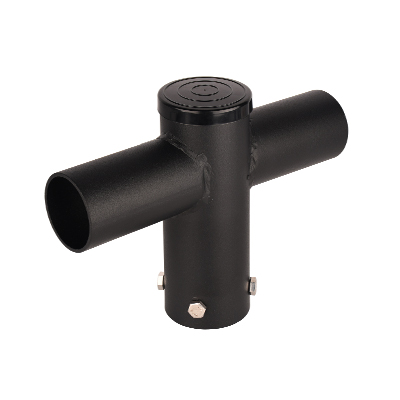

SPOKE-2-180-RND-S

Tenon Adapter (2⅜") with 2, 180° Horizontal Mounts

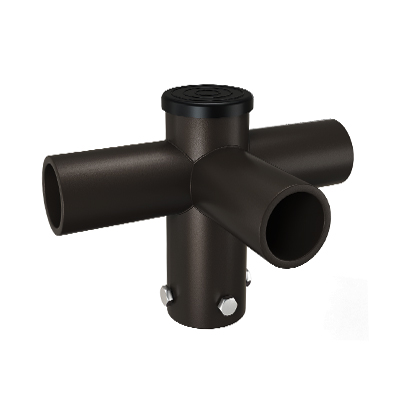

SPOKE-3-90-RND-S

Tenon Adapter (2⅜") with 3, 90° Horizontal Mounts

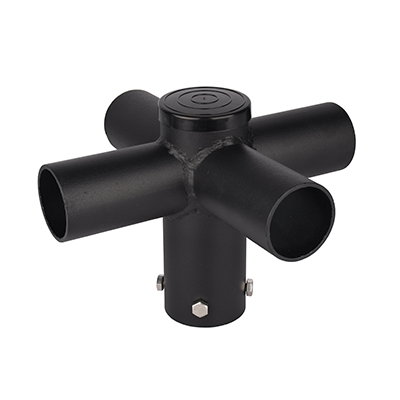

SPOKE-4-90-RND-S

Tenon Adapter (2⅜") with 4, 90° Horizontal Mounts

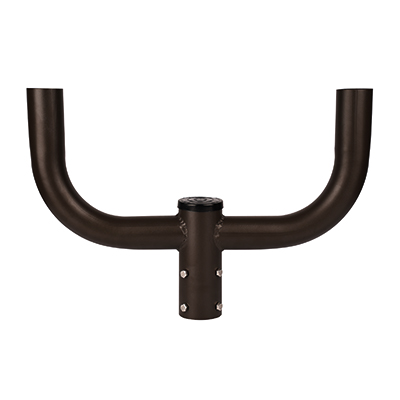

BH-2-180-RND-S

Tenon Adapter (2⅜") with 2, 180° Horizontal Bullhorn Arms

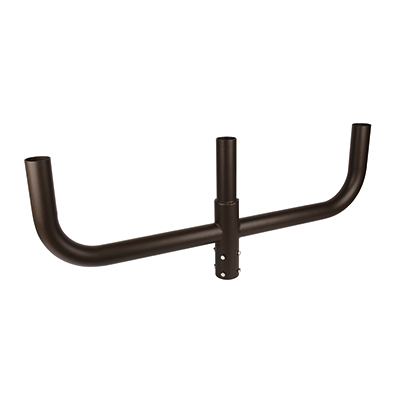

BH-3-180-RND

Tenon Adapter (2⅜") with 3, 180° Horizontal Bullhorn Arms

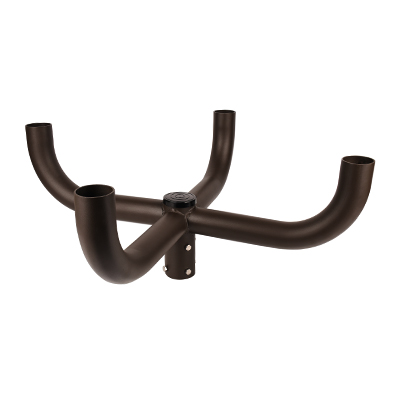

BH-4-90-RND

Tenon Adapter (2⅜") with 4, 90° Horizontal Bullhorn Arms

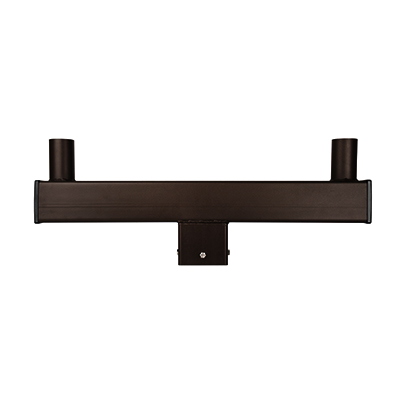

LPBH-2-180-4IN-SQ

4" Square Pole Tenon Adapter (2⅜") with 2, 180° Horizontal Mounts

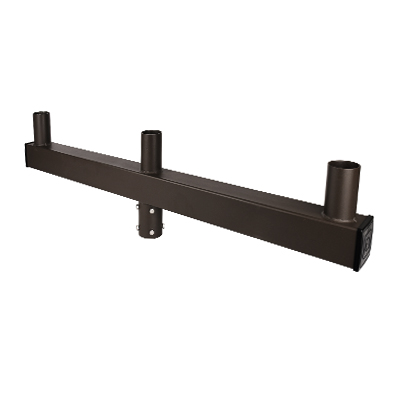

LPBH-3-180-RND

Tenon Adapter (2⅜") with 3, 180° Horizontal Mounts

Additional information

Energy DataInput Frequency:
Input Voltage:
Operating Temperature:
Power Factor:
THD:
Wattage:
Lighting DataLumens:
CCT: , , ,
CRI:
Dimmable:
Efficacy:
L70:
Physical DataColor:
Diffuser:
Lens Type:
Rating:
Warranty:

Model variations…

  • BL02-100W/80W/60W-H-TCP

    BL02-100W/80W/60W-H-TCP

    NuGem Select™ LED Dusk To Dawn Light, 100W Max (3-WATT + 3-CCT), Wet Rated, 125 lm/W, Dimmable + Photocell + Smart Ready
