AR07-300/240/200W-H-TCP-Y

AR07-300/240/200W-H-TCP-Y

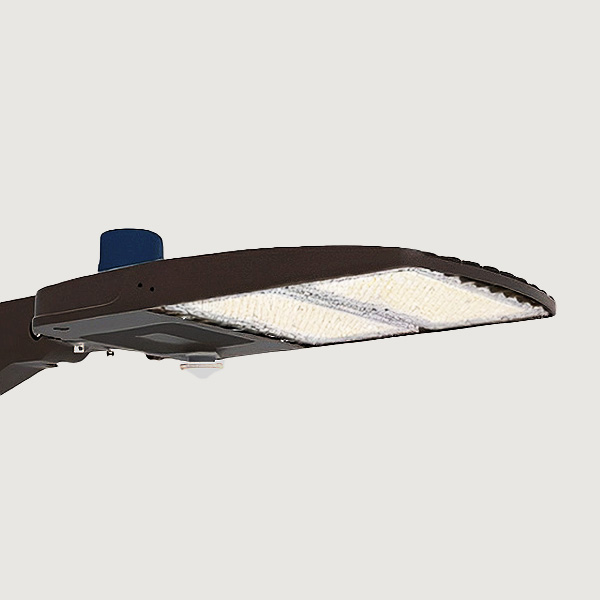

DuraGem Select™ LED Area Light, 300W Max (3-WATT + 3-CCT), Wet Rated, 150 lm/W, Dimmable + Smart

Applications

Premium outdoor luminaire suitable for parking areas, auto dealerships, industrial yards, building exteriors, roadways, alleys, and pedestrian walkways.

Construction

Manufactured for weather-proof durability using solid heavy duty die cast aluminum housing with anti-UV polyester coating to resist water, salt, corrosion, discoloration, and scratching. Wet Location rated. Impact Protection IK08. Includes Pressure Escape Valve.

Electrical

Input voltages 120-277V models with 0-10V Continuous Dimming. Tunable 3-CCT (3000K, 4000K, 5000K) and Tunable 3-Wattages. Operating temperatures -40°F to 113°F (-40°C to 45°C). Surge Protection Rating 10kV-20kV.

Mounting

Adjustable options include Slip-Fit, Round /Square Pole, and Trunnion, Yoke, and Universal Mounts.

Optics

Anti-UV Clear Polycarbonate IES /NEMA Type 3 Lens standard. Lens Type 2, Type 4, Type 5 available.

Controls

Fixture integrated Shorting Cap, Photocell, or Microwave Sensor with Daylight Priority available.

Listings

DLC Premium listed. UL certified to meet US and Canadian standards. FCC and RoHS compliant.

Warranty

5 year exclusive limited warranty.

Download Spec Sheet | More Data
Model: AR07-300/240/200W-H-TCP-Y
Category:
Tag:

Description

Tunable Color Temperatures

3000K

4000K

5000K

Tenon Adapters for Slip-Fit Mount

WMT-90

L-Shape Side Tenon Mount (2⅜")

SFT-FLAT-S

5" Side Tenon Mount (2⅜") for Square Pole

SFT-RND

Side Tenon Mount (2⅜") for Square Pole

TENON-3IN-RND-ST

3" Round Pole Tenon Adapter (2⅜")

TENON-4IN-RND-ST

4" Round Pole Tenon Adapter (2⅜")

TENON-5IN-RND-ST

5" Round Pole Tenon Adapter (2⅜")

TENON-4IN-SQ

4" Square Pole Tenon Adapter (2⅜")

TENON-5IN-SQ

5" Square Pole Tenon Adapter (2⅜")

SPOKE-2-180-RND-S

Tenon Adapter (2⅜") with 2, 180° Horizontal Mounts

SPOKE-3-90-RND-S

Tenon Adapter (2⅜") with 3, 90° Horizontal Mounts

SPOKE-4-90-RND-S

Tenon Adapter (2⅜") with 4, 90° Horizontal Mounts

BH-2-180-RND-S

Tenon Adapter (2⅜") with 2, 180° Horizontal Bullhorn Arms

BH-3-180-RND

Tenon Adapter (2⅜") with 3, 180° Horizontal Bullhorn Arms

BH-4-90-RND

Tenon Adapter (2⅜") with 4, 90° Horizontal Bullhorn Arms

LPBH-2-180-4IN-SQ

4" Square Pole Tenon Adapter (2⅜") with 2, 180° Horizontal Mounts

LPBH-3-180-RND

Tenon Adapter (2⅜") with 3, 180° Horizontal Mounts

Additional information

Energy DataInput Frequency:
Input Voltage:
Operating Temperature:
Power Factor:
THD:
Wattage:
Lighting DataLumens: , ,
CCT: , , ,
CRI:
Dimmable:
Efficacy:
L70:
Physical DataColor:
Diffuser:
Lens Type:
Rating:
Warranty:

Model variations…

  • AR07-500/450/400W-H-TCP-Y

    AR07-500/450/400W-H-TCP-Y

    DuraGem Select™ LED Area Light, 500W Max (3-WATT + 3-CCT), Wet Rated, 150 lm/W, Dimmable + Smart

  • AR07-150/100/70W-H-TCP-Y

    AR07-150/100/70W-H-TCP-Y

    DuraGem Select™ LED Area Light, 150W Max (3-WATT + 3-CCT), Wet Rated, 150 lm/W, Dimmable + Smart
